Description

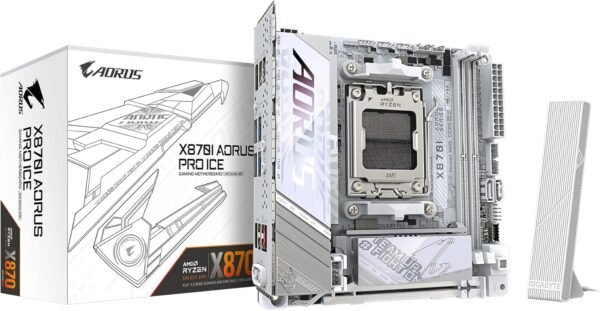

The GIGABYTE X870I AORUS PRO ICE is a Mini ITX motherboard on socket AM5 using AMD’s X870 chipset, finished in white. Mini ITX means a 6.7 inch square board with one expansion slot, which constrains everything about a build, so the specification here is unusually dense for the size: PCIe 5.0, two M.2 slots, Wi-Fi 7, 2.5 gigabit Ethernet and both front and rear USB-C.
Small form factor building is a distinct discipline. Anyone going down this route should also be planning the case and cooler at the same time, since a Mini ITX board pairs with cases like the JONSBO N2 or the darkFlash C275P and often requires a low profile cooler such as the Noctua NH-L9i class of product.
Socket, Chipset And Processor Support
The socket is AM5, also given on the listing as LGA 1718, and the chipset is X870. GIGABYTE states support for AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 series processors, which is a broad and current support list covering three generations on the same socket. That is a genuine advantage of AM5 as a platform and one of the strongest reasons to build on it.
The listing does not state which BIOS version ships on the board, and it does not mention Q-Flash Plus or any other method of updating firmware without a processor installed, although other boards in the AORUS range carry that feature. Anyone buying this specifically for a Ryzen 9000 processor should confirm the shipped BIOS with the seller, because a Mini ITX board is the worst place to discover a firmware problem after assembly.
Memory, Storage And Expansion

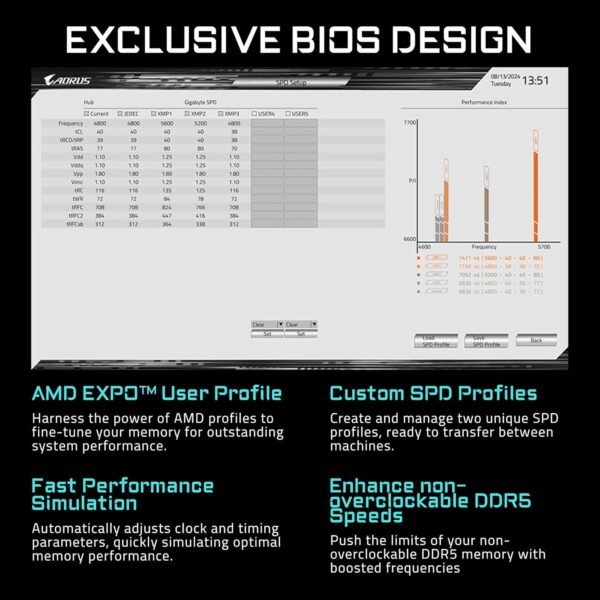

Memory is two DDR5 DIMM slots with AMD EXPO support. EXPO is AMD’s memory overclocking profile standard, the equivalent of Intel’s XMP, and a board that supports it will apply a rated memory kit’s timings automatically rather than requiring manual configuration. Two slots is the Mini ITX standard and it means the memory ceiling is set by the largest pair of modules available rather than by four smaller ones.
The specification block lists Memory Speed as 5200 MHz, which is well below what an X870 board would normally advertise and reads more like a JEDEC baseline than a marketing figure. GIGABYTE does not publish a maximum supported speed anywhere on this listing, which is an unusual omission for an enthusiast board.
Storage is two M.2 slots, and PCIe 5.0 is listed. The listing does not say which slots run at PCIe 5.0 and which at 4.0, nor how many SATA ports exist, nor how the single x16 slot is wired. On a board this small those details determine what fits and at what speed, and the listing does not provide them.
Networking, Power And Assembly Features
Wi-Fi 7 is the headline connectivity feature and it is genuinely current, offering wider channels and higher throughput than Wi-Fi 6E where a compatible router exists. It is paired with 2.5 gigabit wired Ethernet, so both wireless and wired sides are above the old gigabit baseline. Front and rear USB-C ports are listed, with the front header being the more useful of the two on a small case with a top mounted port.
The power design is quoted as 8 plus 2 plus 1 with 110A Smart Power Stages. On a Mini ITX board, where VRM area is severely limited by the board size, a 110 amp power stage rating is a meaningful specification because it indicates the board can feed a high core count processor without the VRM becoming the limiting factor.
GIGABYTE emphasizes assembly friendly features, which matter disproportionately in a cramped case: M.2 EZ-Latch for screwless drive retention, PCIe EZ-Latch for releasing a graphics card without reaching behind it, Wi-Fi EZ-Plug for the antenna connection, and an EZ-Debug Zone for diagnosing a board that will not post. Anyone who has built in a Mini ITX case with a graphics card already installed will recognize why a PCIe release mechanism is worth having. The warranty is stated at five years.
Highlights
- Socket AM5 with the AMD X870 chipset in Mini ITX form factor.
- Supports Ryzen 9000, 8000 and 7000 series processors per GIGABYTE.
- Two DDR5 DIMM slots with AMD EXPO support.
- Two M.2 slots and PCIe 5.0 support.
- Wi-Fi 7 with 2.5 gigabit Ethernet.
- Front and rear USB-C.
- 8 plus 2 plus 1 power design with 110A Smart Power Stages.
- M.2, PCIe and Wi-Fi EZ-Latch assembly features plus an EZ-Debug Zone.
- White finish and a five year warranty.
Things To Consider
There is a data inconsistency worth naming. The listing gives a first availability date of December 10, 2024, which is consistent with an X870 board, but the ASIN on the record follows a numbering pattern associated with much older listings. That mismatch suggests the product record may have been created by reusing an existing listing, and it is a reason to verify that the item shipped matches the model described.
Mini ITX carries structural limits no specification can remove. There is one expansion slot, so a graphics card uses it and nothing else fits. There are two memory slots, not four. Cooler height is limited by the case rather than the board, and the small VRM area means airflow across the board matters more than in a full size build. Buyers new to small form factor should plan the whole system, case, cooler, power supply and graphics card length together rather than buying the board first.
Customer feedback is minimal at 4.3 stars across 31 ratings, which on a board first listed in December 2024 reflects how recent it is rather than any judgement about quality. The listing weight of 2.79 pounds and package dimensions of 9.29 by 9.17 by 3.78 inches describe the retail box, not the board, since Mini ITX is 6.7 inches square. Readers can compare other compact boards in the motherboards category and processors in the CPU processors category.
Who It Suits
The X870I AORUS PRO ICE suits a builder assembling a compact, current generation AMD system who wants Wi-Fi 7, PCIe 5.0 and two NVMe drives without stepping up to a full size board, and who values the white finish for a matching build. The three generation processor support list and the five year warranty both point to a long service life.
It is the wrong board for anyone who needs more than one expansion slot, more than two memory slots, or more than two M.2 drives. It is also wrong for a first time builder on a budget, since Mini ITX assembly is harder and the components around it cost more, and for buyers who need the exact slot and port layout documented before ordering.
